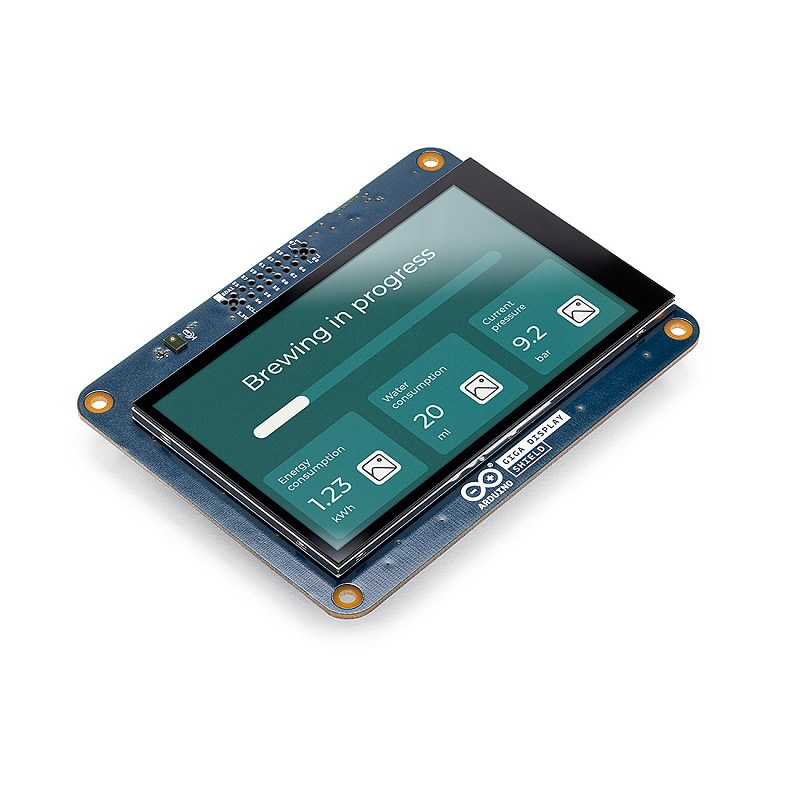

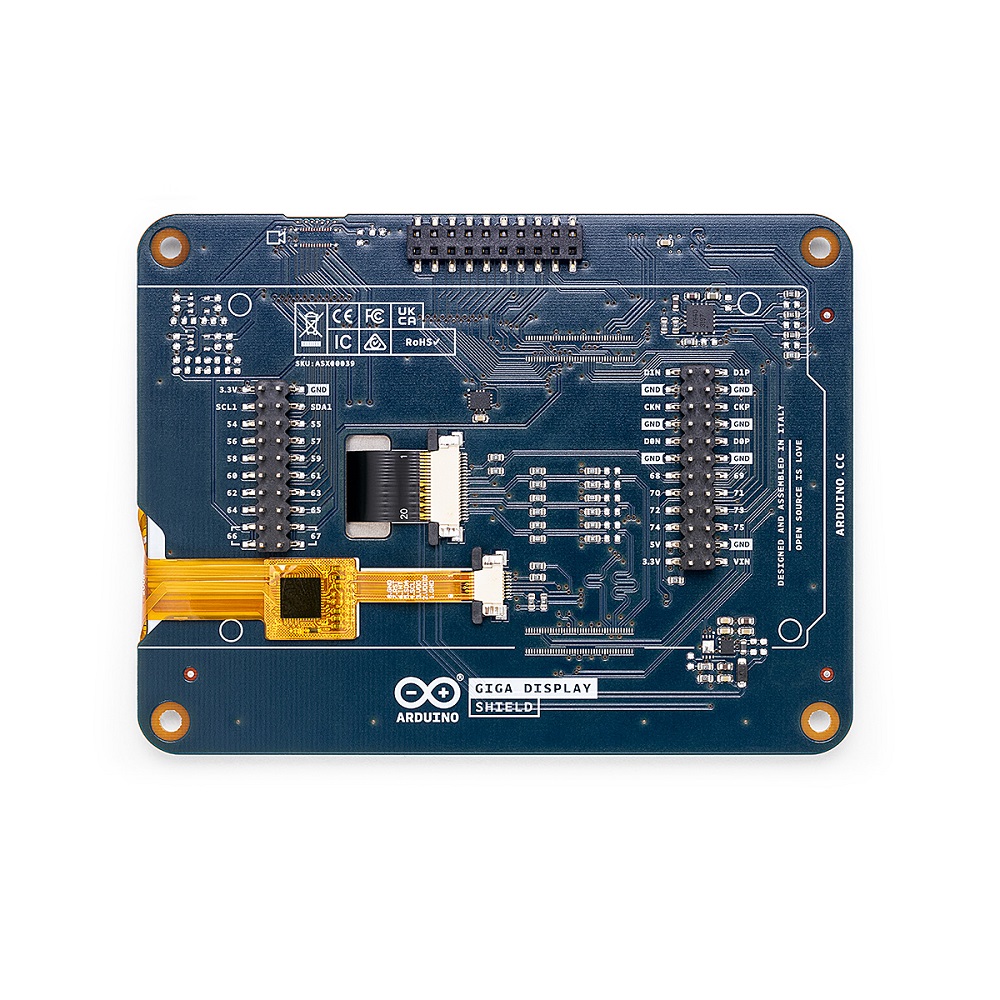

The Arduino GIGA Display Shield (from now on referred to as GIGA Display Shield) is an easy way to add a touchscreen
display with orientation detection to your Arduino GIGA R1 WiFi (from now on referred to as GIGA R1 WiFi) board. The GIGA Display Shield provides easy cross-form factor support for an external touch display, together with several useful peripherals.
Human-Machine Interface Systems: The GIGA Display Shield can be paired together with a GIGA R1 WiFi board for rapid development of a Human-Machine Interface system. The included gyroscope allows for easy orientation detection to adjust the visual element orientation.
Interaction Design Prototyping: Quickly explore novel interaction design concepts and develop new ways to communicate with technology, including social robots that respond to sound.
Voice Assistant Use the included microphone, together with the edge computing power of the GIGA R1 WiFi for voice automation with visual feedback
Note: The GIGA Display Shield requires a GIGA R1 WiFi board to function. It has no microcontroller and cannot be
programmed independently
Features:
- Display: KD040WVFID026-01-C025A 3.97″ TFT Display
- Resolution: 480×800 pixels
- Color Depth: 16.7 million colors
- Pixel Size: 0.108 mm
- Touch Sensor: Capacitive with 5-point and gesture support
- Backlight: Edge LED backlight
- IMU (Inertial Measurement Unit): 16-bit BMI270 6-axis IMU
- Accelerometer: 3-axis with ±2g/±4g/±8g/±16g range
- Gyroscope: 3-axis with ±125dps/±250dps/±500dps/±1000dps/±2000dps range
- SMLP34RGB2W3 RGB LED
- Acoustic Overload Point (AOP): 122.5 dbSPL
- Signal-to-Noise Ratio: 64 dB
- Sensitivity: –26 dBFS ± 3 dB sensitivity
- Display Driver: IS31FL3197-QFLS2-TR Driver with integrated charge pump
- Connector: GIGA Connector
- Camera Connector: 2.54 mm Camera Connector
1 Year Warranty
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
What voids the warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Package Includes:

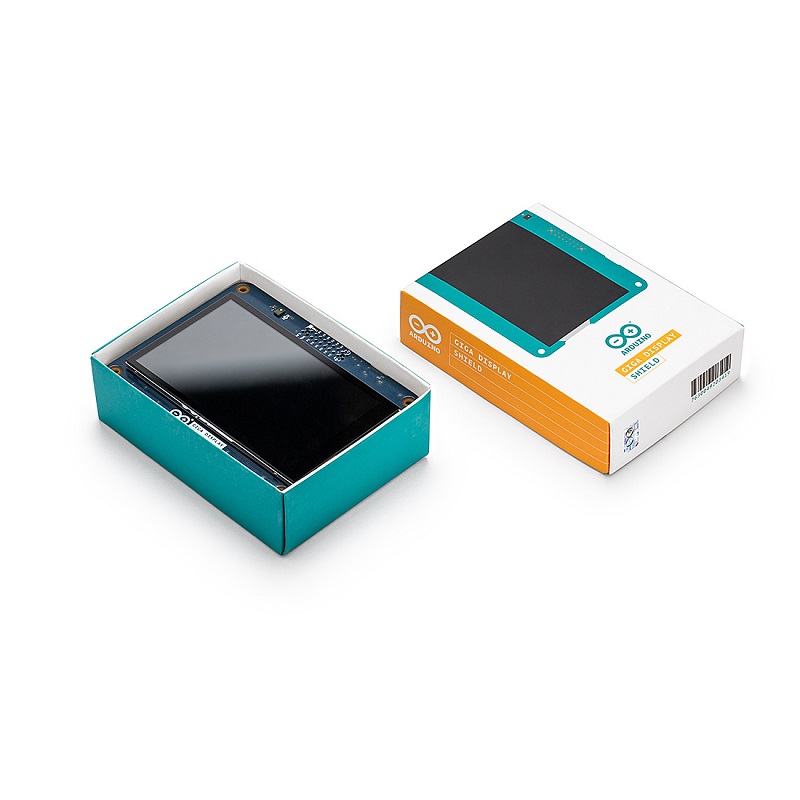

1 x Arduino GIGA Display Shield ASX00039
Country Of Origin: Italy
